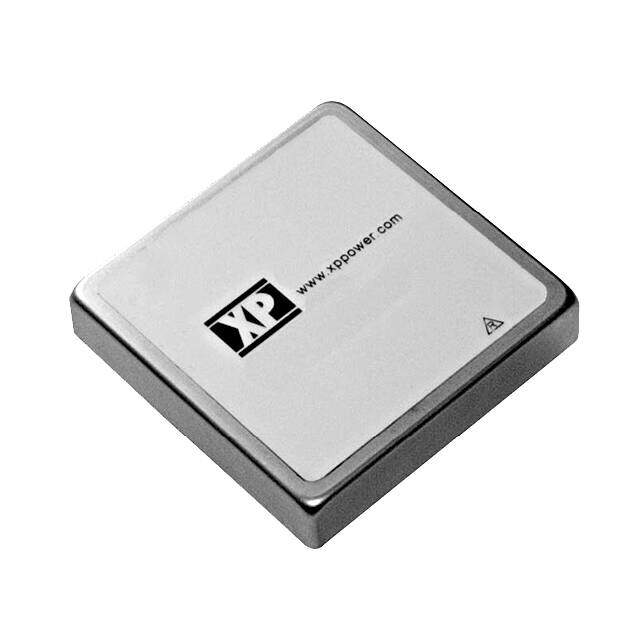

JCP4012S05
RoHS
/
Package 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCP4012S05 Isolated Board Mount DC/DC Converter, Metal Case, Fixed, 1 Output, 9 V, 18 V, 40 W, 5 V
PDF
/
Buying Options
Total Price: USD $123.7
Unit Price: USD $123.702
≥1 USD $123.702
≥10 USD $116.7
≥100 USD $110.09434
≥500 USD $103.86258
≥1000 USD $97.98357
≥3000 USD $92.43733
Inventory: 8932
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 10.2mm
Technical
Min Input Voltage (DC) 9V
Max Input Voltage (DC) 18V
Nominal Output Voltage 5V
Max Output Power 40W
Nominal Input Voltage 12V
Current - Output 1 8.8A
Output Power 40W
Output Current 8.8A
Operating Supply Voltage 12V
Max Output Current 8.8A
Output Voltage 5V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 89%
Number of Outputs 1
Depth 50.8mm
Power Rating 40W
Power (Watts) 44W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series JCP (40W)
Published 2009
Operating Temperature -40°C~100°C With Derating
Physical
Package / Case 9-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
