JCM2012D15
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

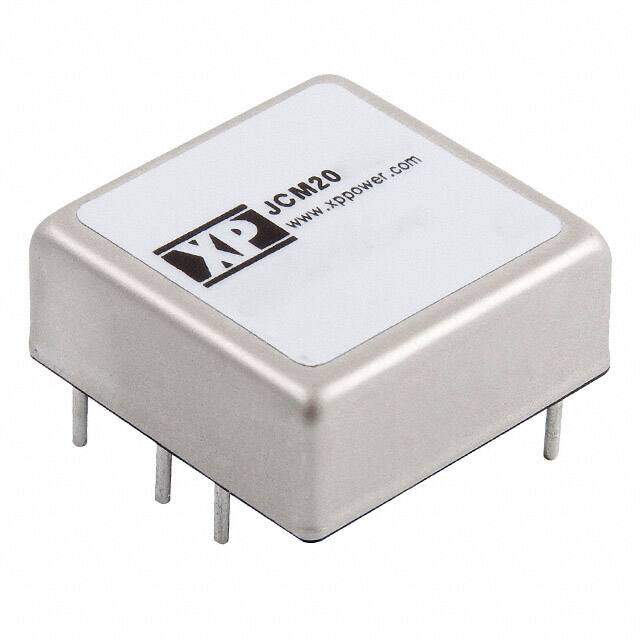

XP POWER JCM2012D15 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 18 V, 20 W, 15 V
PDF
/
Buying Options
Total Price: USD $56.18
Unit Price: USD $56.18
≥1 USD $56.18
≥10 USD $53
≥100 USD $50
≥500 USD $47.16981
≥1000 USD $44.49982
Inventory: 5343
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2013
Series JCM (20W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Feature Remote On/Off, OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 20W
Max Power Dissipation 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 25.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 6
JESD-30 Code S-XDMA-P6
Number of Outputs 2
Efficiency 89%
Voltage - Isolation 1.6kV
Output Voltage 15V
Max Output Current 667mA
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 667mA 667mA
Output Current 667mA
Output Power 20W
Control Features Enable, Active High
Voltage - Output 2 -15V
Current - Output 1 667mA
Max Output Power 20W
Current - Output 2 667mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 9.906mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Alternative Model
