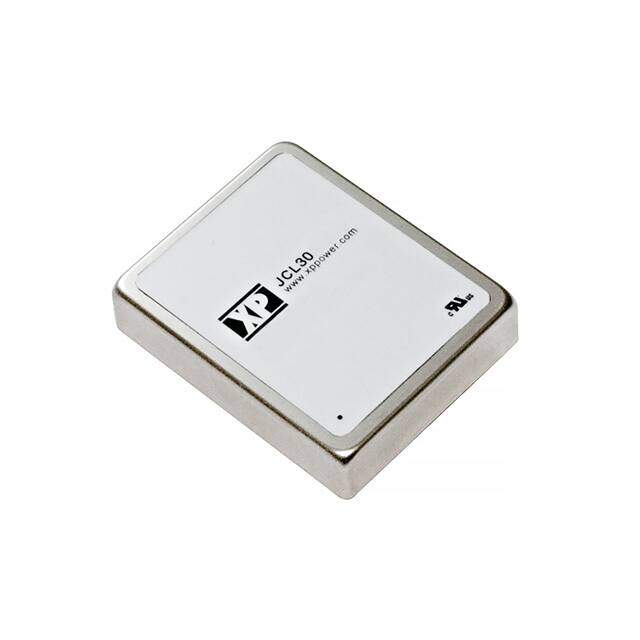

JCL3024D12
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCL3024D12 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 30 W, 12 V
PDF
/
Buying Options
Total Price: USD $82.36
Unit Price: USD $82.35988
≥1 USD $82.35988
≥10 USD $77.698
≥100 USD $73.3
≥500 USD $69.15094
≥1000 USD $65.23674
≥3000 USD $61.54409
Inventory: 4914
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Weight 48g
Technical
Operating Temperature -40°C~100°C With Derating
Published 2009
Series JCL30 (30W)
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Feature Remote On/Off, OCP, OTP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 30W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P7
Number of Outputs 2
Efficiency 91%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 1.25A
Operating Supply Voltage 24V
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 1.25A 1.25A
Output Current 1.25A
Output Power 30W
Current - Output 1 1.25A
Max Output Power 30W
Nominal Output Voltage -12V
Current - Output 2 1.25A
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 10.2mm
Width 40.64mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
