JCK6048S15
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description

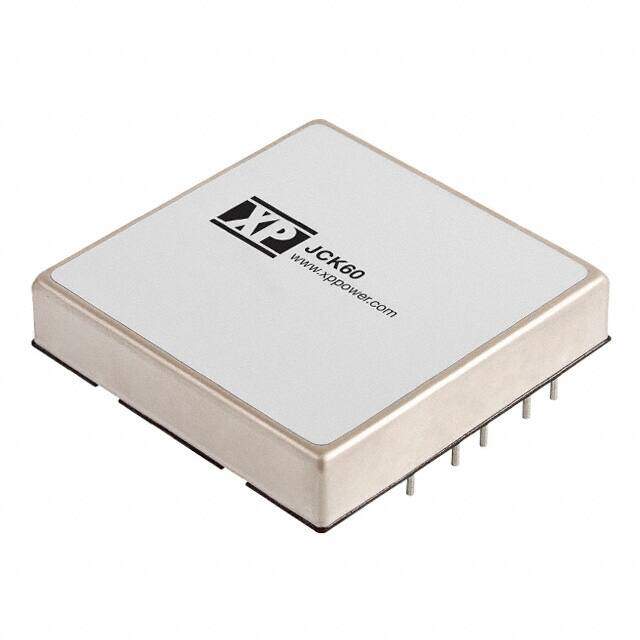

XP POWER JCK6048S15 Isolated Board Mount DC/DC Converter, High Power Density, Fixed, 1 Output, 36 V, 75 V, 60 W, 15 V
PDF
/
Buying Options
Total Price: USD $115
Unit Price: USD $115
≥1 USD $115
≥10 USD $108.49057
≥100 USD $102.34959
≥500 USD $96.55622
≥1000 USD $91.09077
Inventory: 1375
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Nominal Output Voltage 15V
Max Output Power 60W
Current - Output 1 4A
Control Features Enable, Active High
Output Power 60W
Output Current 4A
Max Output Current 4A
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 91%
Number of Outputs 1
Depth 50.8mm
Max Power Dissipation 60W
Power Rating 60W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series JCK (60W)
Published 2013
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 8-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
