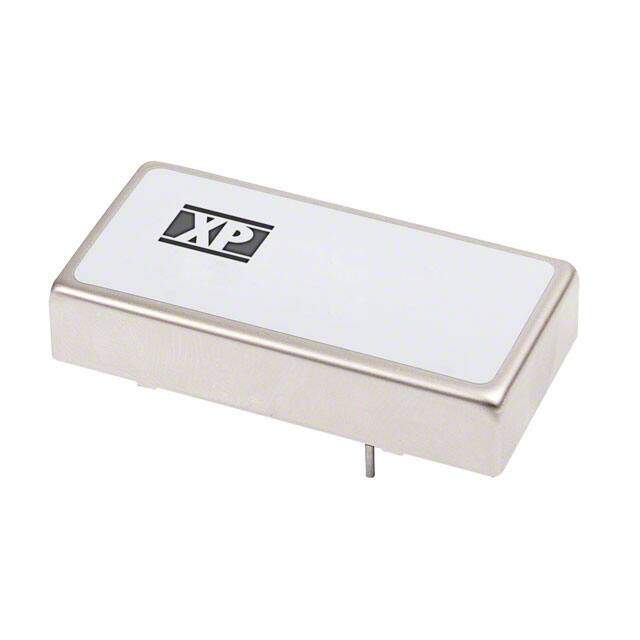

JCK3048S15
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCK3048S15 Isolated Board Mount DC/DC Converter, 2:1 Input, Fixed, 1 Output, 36 V, 75 V, 30 W, 15 V
PDF
/
Buying Options
Total Price: USD $58.83
Unit Price: USD $58.83
≥1 USD $58.83
≥10 USD $55.5
≥100 USD $52.35849
≥1000 USD $46.59887
Inventory: 912
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2011
Series JCK (30W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature SEATED HGT CALCULATED
Power Rating 30W
Max Power Dissipation 30W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T6
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 75V
Output Voltage 15V
Max Output Current 2A
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 2A
Output Power 30W
Control Features Enable, Active High
Current - Output 1 2A
Max Output Power 30W
Nominal Output Voltage 15V
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 36V
Dimensions
Height 10.16mm
Width 25.4mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
