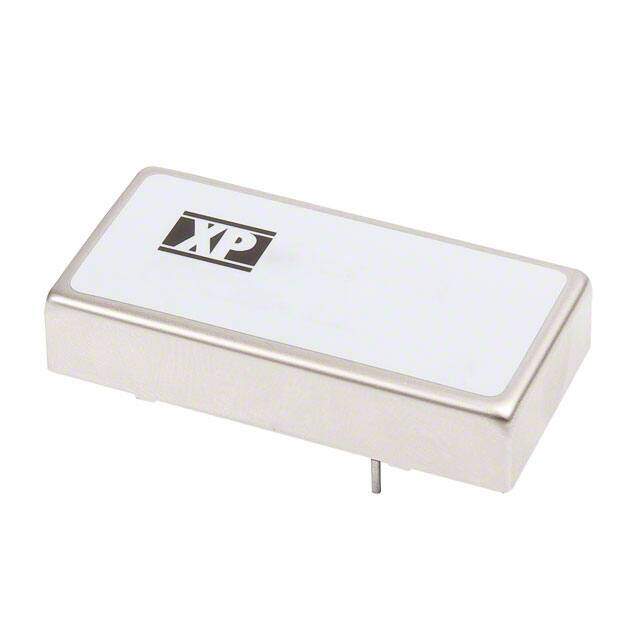

JCK2012S3V3
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCK2012S3V3 Isolated Board Mount DC/DC Converter, 2:1 Input, Fixed, 1 Output, 9 V, 18 V, 20 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $50.56
Unit Price: USD $50.562
≥1 USD $50.562
≥10 USD $47.7
≥100 USD $45
≥500 USD $42.45283
≥1000 USD $40.04984
Inventory: 9142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2011
Series JCK (20W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Power Rating 20W
Max Power Dissipation 18W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 50.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P6
Number of Outputs 1
Efficiency 90%
Voltage - Isolation 1.6kV
Voltage - Input (Max) 18V
Output Voltage 3.3V
Max Output Current 5.5A
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 5.5A
Output Power 20W
Control Features Enable, Active High
Current - Output 1 5.5A
Max Output Power 20W
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 10.16mm
Width 25.4mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
