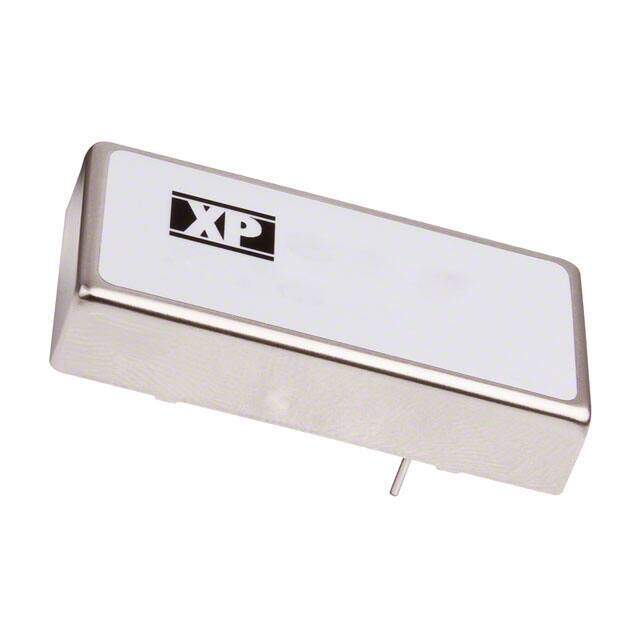

JCK1512D12
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCK1512D12 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 18 V, 15 W, 12 V
PDF
/
Inventory: 1520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 5-DIP Module
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2009
Series JCK (15W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature OCP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power Rating 15W
Max Power Dissipation 15W
Depth 50.8mm
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 625mA
Current - Output (Max) 625mA 625mA
Output Current 625mA
Output Power 15W
Voltage - Output 2 -12V
Current - Output 1 625mA
Max Output Power 15W
Nominal Output Voltage -12V
Current - Output 2 625mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 10.16mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
