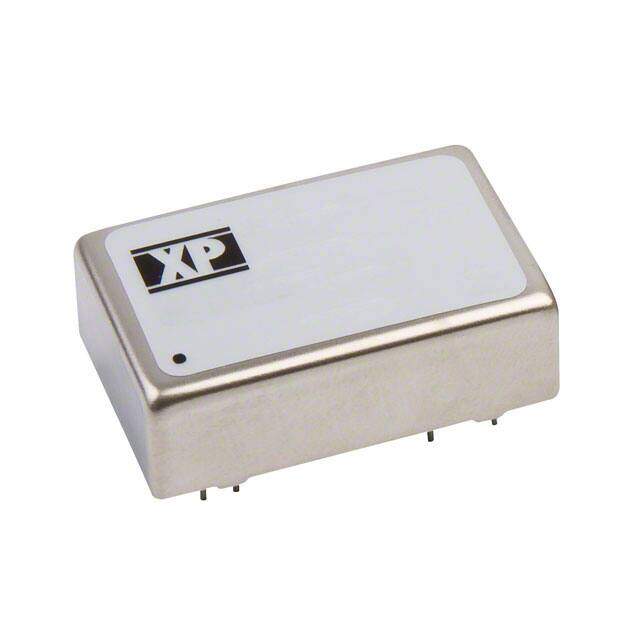

JCJ0848D05
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER, DC/DC, 8W, +/-5V
PDF
/
Buying Options
Total Price: USD $26.97
Unit Price: USD $26.9664
≥1 USD $26.9664
≥10 USD $25.44
≥100 USD $24
≥500 USD $22.64151
≥1000 USD $21.35991
≥3000 USD $20.15086
Inventory: 9021
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 11-DIP Module, 8 Leads
Weight 20g
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2009
Series JCJ (8W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Power Rating 8W
Max Power Dissipation 8W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 31.75mm
JESD-30 Code R-MDMA-P8
Number of Outputs 2
Efficiency 82%
Voltage - Isolation 1.5kV
Output Voltage 5V
Max Output Current 800mA
Operating Supply Voltage 48V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 800mA 800mA
Output Current 800mA
Output Power 8W
Voltage - Output 2 -5V
Current - Output 1 800mA
Max Output Power 8W
Nominal Output Voltage -5V
Current - Output 2 800mA
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 36V
Dimensions
Height 10.16mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
