JCE0324D03-H
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

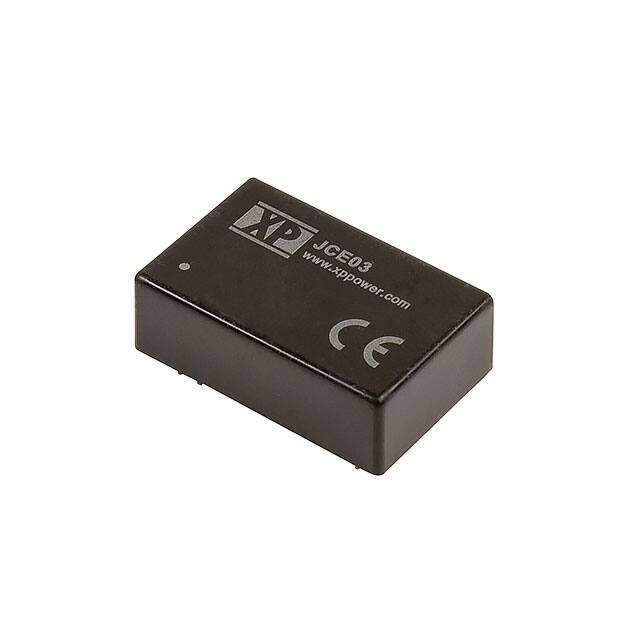

XP POWER JCE0324D03-H Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 3 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $22.47
Unit Price: USD $22.472
≥1 USD $22.472
≥10 USD $21.2
≥100 USD $20
≥1000 USD $17.79993
Inventory: 902
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 36V
Current - Output 2 450mA
Max Output Power 3W
Current - Output 1 450mA
Voltage - Output 2 -3.3V
Output Power 3W
Current - Output (Max) 450mA 450mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Output 1 3.3V
Max Output Current 450mA
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 75%
Number of Outputs 2
JESD-30 Code R-PDMA-T8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 20.32mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series JCE (3W)
Published 2014
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 7 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
