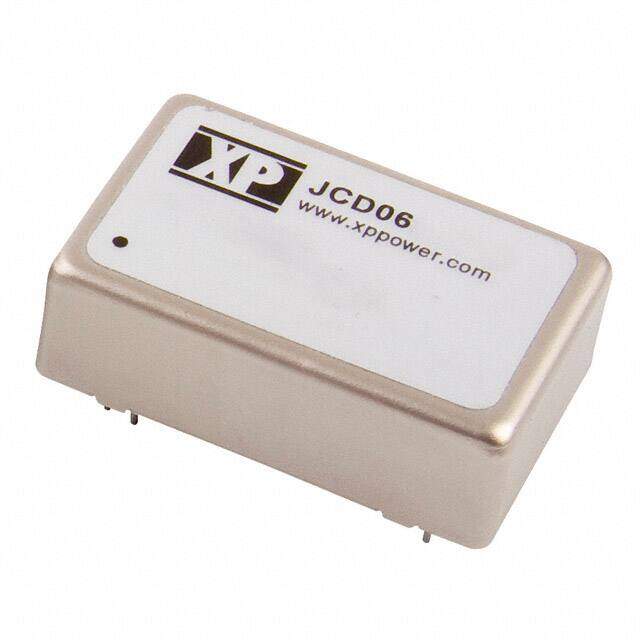

JCD0624D15
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCD0624D15 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 6 W, 15 V
PDF
/
Buying Options
Total Price: USD $23.15
Unit Price: USD $23.14616
≥1 USD $23.14616
≥10 USD $21.836
≥100 USD $20.6
≥500 USD $19.43396
≥1000 USD $18.33393
≥3000 USD $17.29616
Inventory: 5158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2013
Series JCD (6W)
Size / Dimension 1.25Lx0.80W x 0.41 H 31.8mmx20.3mmx10.4mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Power Rating 6W
Max Power Dissipation 6W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 31.75mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P8
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.6kV
Output Voltage 15V
Max Output Current 200mA
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 6W
Voltage - Output 2 -15V
Current - Output 1 200mA
Max Output Power 6W
Nominal Output Voltage -15V
Current - Output 2 200mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 10.4mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
