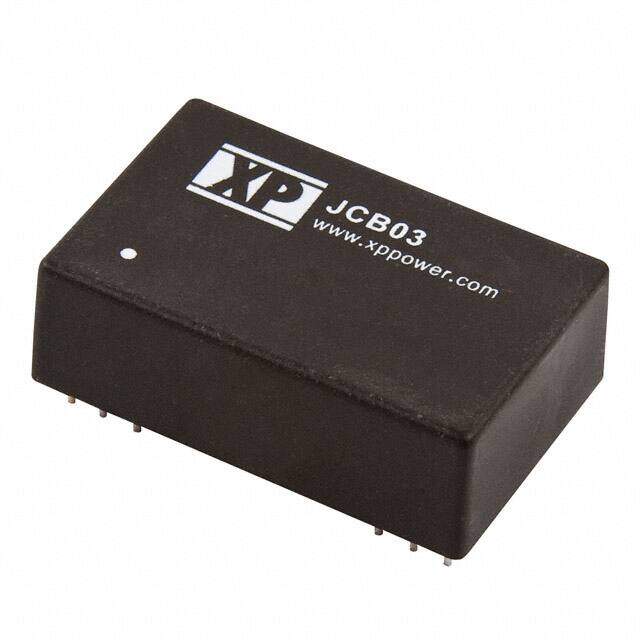

JCB0324D05
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCB0324D05 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 3 W, 5 V
PDF
/
Buying Options
Total Price: USD $13.93
Unit Price: USD $13.93264
≥1 USD $13.93264
≥10 USD $13.144
≥100 USD $12.4
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 36V
Current - Output 2 300mA
Nominal Output Voltage -5V
Max Output Power 3W
Current - Output 1 300mA
Voltage - Output 2 -5V
Output Power 3W
Output Current 300mA
Current - Output (Max) 300mA 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 300mA
Output Voltage 5V
Voltage - Isolation 1.5kV
Efficiency 78%
Number of Outputs 2
JESD-30 Code R-XDMA-P14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 31.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Power Rating 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series JCB (3W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
