JCA1012D02
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

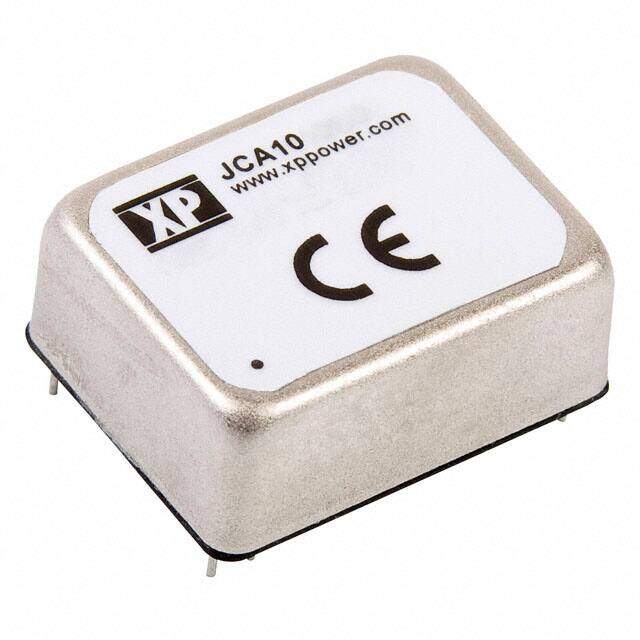

XP POWER JCA1012D02Isolated Board Mount DC/DC Converter, 2:1 Input, Through Hole, 10W, 12V, 420mA, -12V, 420mA
PDF
/
Buying Options
Total Price: USD $44.81
Unit Price: USD $44.80917
≥1 USD $44.80917
≥10 USD $42.2728
≥100 USD $39.88
≥500 USD $37.62264
≥1000 USD $35.49306
Inventory: 2874
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2013
Series JCA (10W)
Size / Dimension 1.00Lx0.80W x 0.39 H 25.4mmx20.3mmx10.0mm
Feature OCP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 25.4mm
JESD-30 Code R-XDMA-P8
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 420mA
Input Voltage-Nom 18V
Trim/Adjustable Output NO
Current - Output (Max) 420mA 420mA
Output Current 420mA
Output Power 10W
Voltage - Output 2 -12V
Current - Output 1 420mA
Max Output Power 10W
Current - Output 2 420mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 9.906mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Alternative Model
