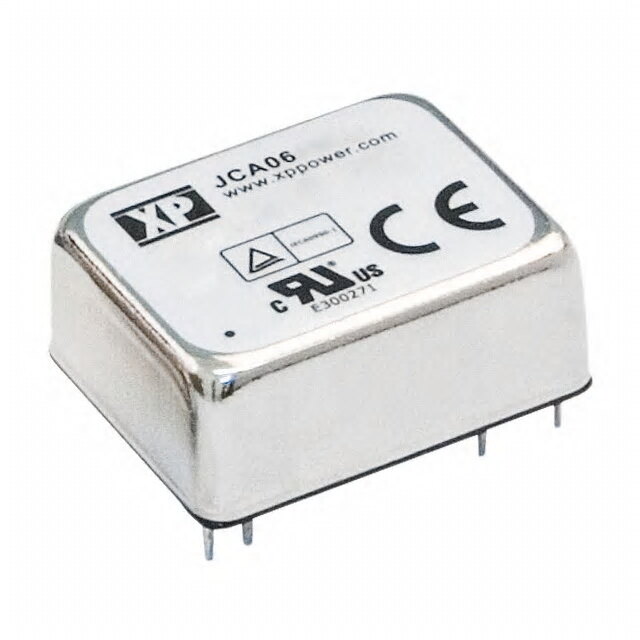

JCA0648S15
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCA0648S15 Isolated Board Mount DC/DC Converter, 2:1 Input, DIP, Fixed, Through Hole, 6 W, 15 V, 400 mA
PDF
/
Buying Options
Total Price: USD $43.99
Unit Price: USD $43.99
≥1 USD $43.99
≥10 USD $41.5
≥100 USD $39.15094
Inventory: 2765
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 20.3mm
Height 9.906mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Nominal Output Voltage 15V
Max Output Power 6W
Output Power 6W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Max Output Current 400mA
Output Voltage 15V
Voltage - Isolation 1.5kV
Efficiency 84%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-MDMA-P7
Depth 25.4mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 6W
Power Rating 6W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx0.80W x 0.39 H 25.4mmx20.3mmx10.0mm
Series JCA (6W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 7 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 16 Weeks
