JCA0412D01
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCA0412D01 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 18 V, 4 W, 5 V
PDF
/
Buying Options
Total Price: USD $39.38
Unit Price: USD $39.379
≥1 USD $39.379
≥10 USD $37.15
≥100 USD $35.04717
≥500 USD $33.06337
≥1000 USD $31.19186
Inventory: 6435
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.906mm
Technical
Min Input Voltage (DC) 9V
Max Input Voltage (DC) 18V
Current - Output 2 400mA
Max Output Power 4W
Current - Output 1 400mA
Voltage - Output 2 -5V
Output Power 4W
Output Current 400mA
Current - Output (Max) 400mA 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Max Output Current 400mA
Output Voltage 5V
Voltage - Isolation 1.5kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-MDMA-P8
Depth 25.4mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 4W
Power Rating 4W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx0.80W x 0.39 H 25.4mmx20.3mmx10.0mm
Series JCA (4W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 16 Weeks

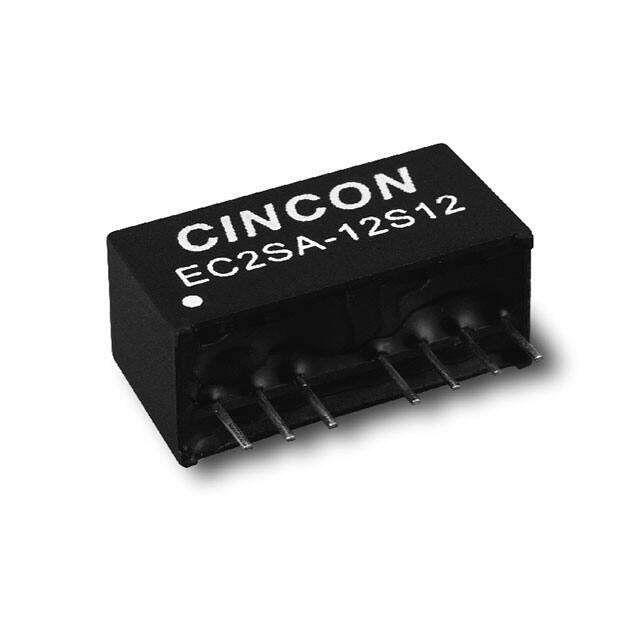

Alternative Model
