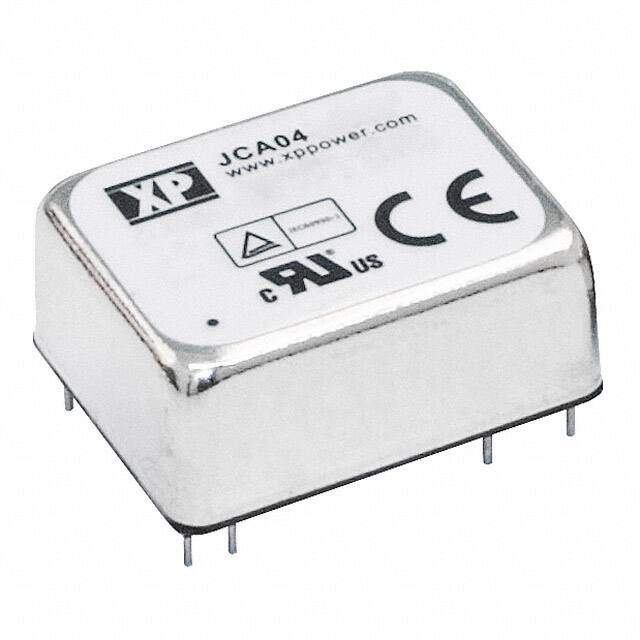

JCA0405D02
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER JCA0405D02 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 4.5 V, 9 V, 4 W, 12 V
PDF
/
Buying Options
Total Price: USD $40.75
Unit Price: USD $40.7464
≥1 USD $40.7464
≥10 USD $38.44
≥100 USD $36.26415
≥500 USD $34.21146
≥1000 USD $32.27497
Inventory: 5684
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2007
Series JCA (4W)
Size / Dimension 1.00Lx0.80W x 0.39 H 25.4mmx20.3mmx10.0mm
Feature OCP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 4W
Max Power Dissipation 4W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 25.4mm
JESD-30 Code R-MDMA-P8
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 83%
Voltage - Isolation 1.5kV
Output Voltage 12V
Max Output Current 170mA
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 170mA 170mA
Output Current 170mA
Output Power 4W
Voltage - Output 2 -12V
Current - Output 1 170mA
Max Output Power 4W
Current - Output 2 170mA
Max Input Voltage (DC) 9V
Min Input Voltage (DC) 4.5V
Dimensions
Height 9.906mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
