JCA0305S03
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

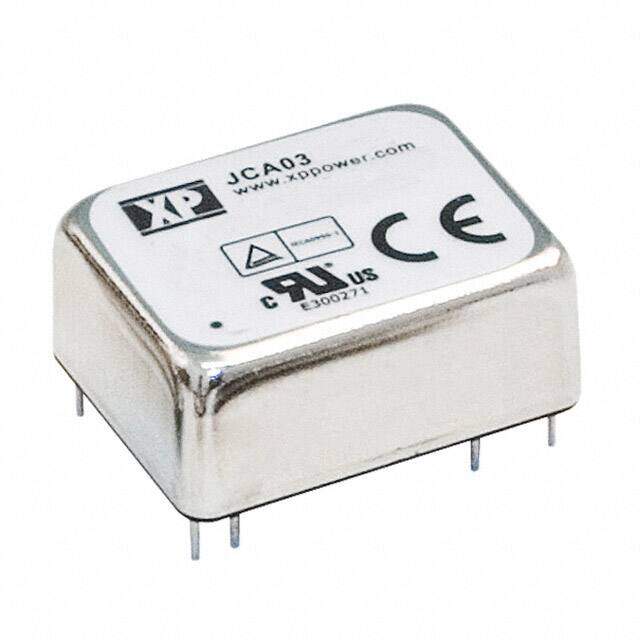

XP POWER JCA0305S03 Isolated Board Mount DC/DC Converter, 2:1 Input, Fixed, 1 Output, 4.5 V, 9 V, 3 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $25.84
Unit Price: USD $25.8428
≥1 USD $25.8428
≥10 USD $24.38
≥100 USD $23
≥1000 USD $20.46992
≥3000 USD $19.31124
Inventory: 6725
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 20.3mm
Height 9.906mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 9V
Nominal Output Voltage 3.3V
Max Output Power 3W
Nominal Input Voltage 5V
Current - Output 1 910mA
Output Power 3W
Output Current 910mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 910mA
Output Voltage 3.3V
Voltage - Input (Max) 9V
Voltage - Isolation 1.5kV
Efficiency 68%
Number of Outputs 1
JESD-30 Code R-MDMA-P8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 25.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Power Rating 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP, UVLO
Size / Dimension 1.00Lx0.80W x 0.39 H 25.4mmx20.3mmx10.0mm
Series JCA (3W)
Published 2007
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 24-DIP Module, 7 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 16 Weeks
