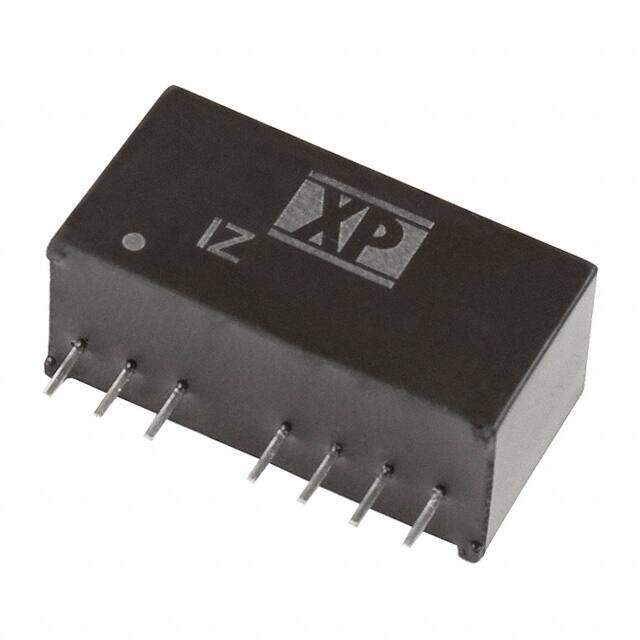

IZ2403S
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Power Supply;DC DC CONVERTER,3WATT,REGULATED
PDF
/
Buying Options
Total Price: USD $15.37
Unit Price: USD $15.37
≥1 USD $15.37
≥10 USD $14.5
≥100 USD $13.67925
≥500 USD $12.90495
≥1000 USD $12.17448
≥3000 USD $11.48536
Inventory: 7982
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 9.2mm
Height 11.176mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 36V
Max Output Power 3W
Current - Output 1 700mA
Control Features Enable, Active Low
Output Power 3W
Trim/Adjustable Output NO
Voltage - Output 1 3.3V
Max Output Current 700mA
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.6kV
Efficiency 74%
Number of Outputs 1
JESD-30 Code R-XSMA-T7
Pin Count 8/7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 21.85mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Series IZ (3W)
Published 2013
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 9 Weeks
