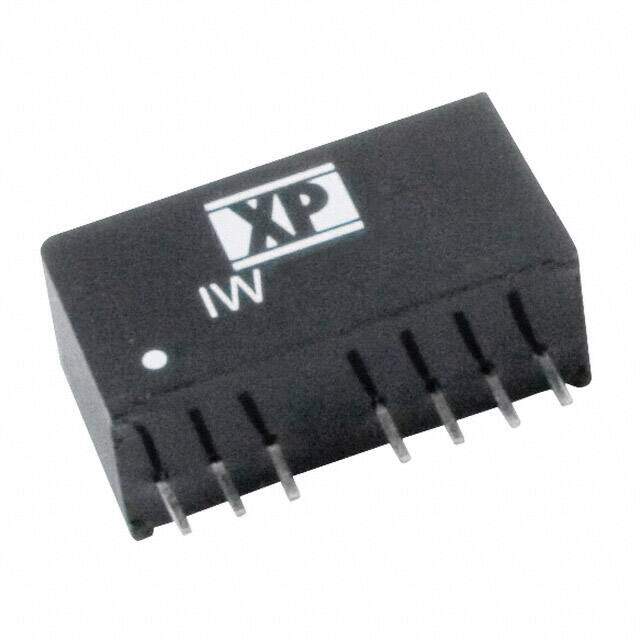

IW4812SA
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 1W
PDF
/
Buying Options
Total Price: USD $12.72
Unit Price: USD $12.72
≥1 USD $12.72
≥10 USD $12
≥100 USD $11.32075
≥500 USD $10.67996
≥1000 USD $10.07543
Inventory: 3539
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 8-SIP Module, 4 Leads
Technical
Operating Temperature -40°C~100°C With Derating
Packaging Tube
Published 2013
Series IW (1W)
Size / Dimension 0.86Lx0.36W x 0.44 H 21.9mmx9.2mmx11.1mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 21.85mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XSMA-T5
Number of Outputs 1
Efficiency 70%
Voltage - Isolation 1kV
Voltage - Input (Max) 72V
Output Voltage 12V
Max Output Current 83mA
Voltage - Output 1 12V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Power 1W
Current - Output 1 83mA
Max Output Power 1W
Max Input Voltage (DC) 72V
Min Input Voltage (DC) 36V
Dimensions
Height 11.176mm
Width 9.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
