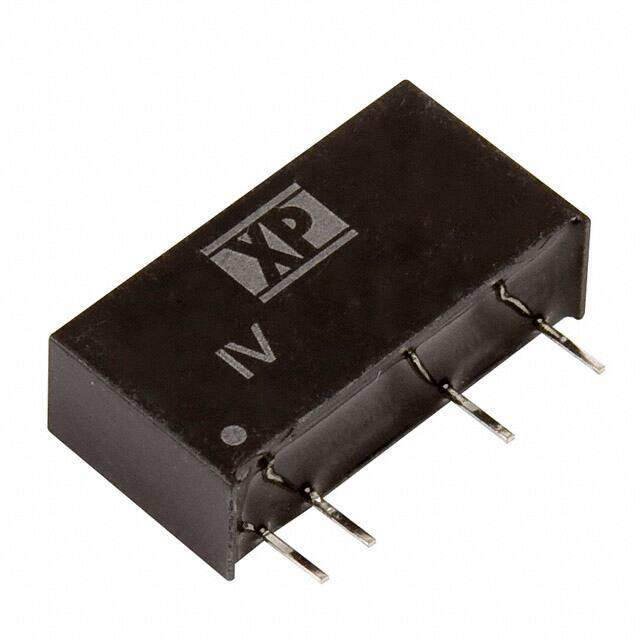

IV4805S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 1W
PDF
/
Buying Options
Total Price: USD $7.87
Unit Price: USD $7.8652
≥1 USD $7.8652
≥10 USD $7.42
≥100 USD $7
≥1000 USD $6.22998
Inventory: 6128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2013
Series IV (1W)
Size / Dimension 0.76Lx0.24W x 0.39 H 19.3mmx6.0mmx10.0mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 6mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 5
JESD-30 Code R-XSMA-T5
Number of Outputs 2
Efficiency 72%
Voltage - Isolation 3kV
Output Voltage 5V
Max Output Current 100mA
Voltage - Output 1 5V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Output Power 1W
Voltage - Output 2 -5V
Current - Output 1 200mA
Max Output Power 1W
Current - Output 2 200mA
Max Input Voltage (DC) 52.8V
Min Input Voltage (DC) 43.2V
Dimensions
Height 9.906mm
Length 19.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
