ITX1203SA
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

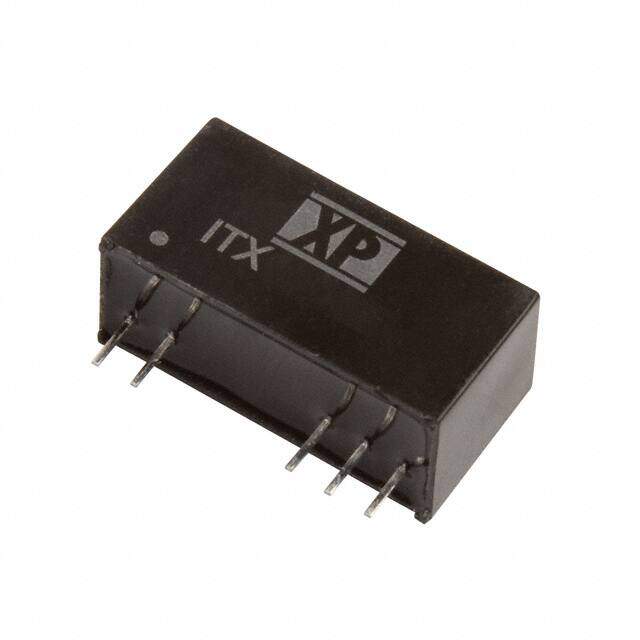

XP POWER ITX1203SAIsolated Board Mount DC/DC Converter, 2:1 Input, SIP, Fixed, SIP, 6 W, 3.3 V, 1.3 A
PDF
/
Buying Options
Total Price: USD $21.35
Unit Price: USD $21.3484
≥1 USD $21.3484
≥10 USD $20.14
≥100 USD $19
≥500 USD $17.92453
≥1000 USD $16.90993
≥3000 USD $15.95277
Inventory: 8167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 8-SIP Module, 5 Leads
Technical
Operating Temperature -40°C~65°C
Packaging Tube
Published 2014
Series ITX (6W)
Size / Dimension 0.86Lx0.36W x 0.44 H 21.9mmx9.2mmx11.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 4W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 21.85mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-P5
Number of Outputs 1
Efficiency 78%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 3.3V
Max Output Current 1.3A
Voltage - Output 1 3.3V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Power 6W
Current - Output 1 1.3A
Max Output Power 6W
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 11.176mm
Width 9.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
