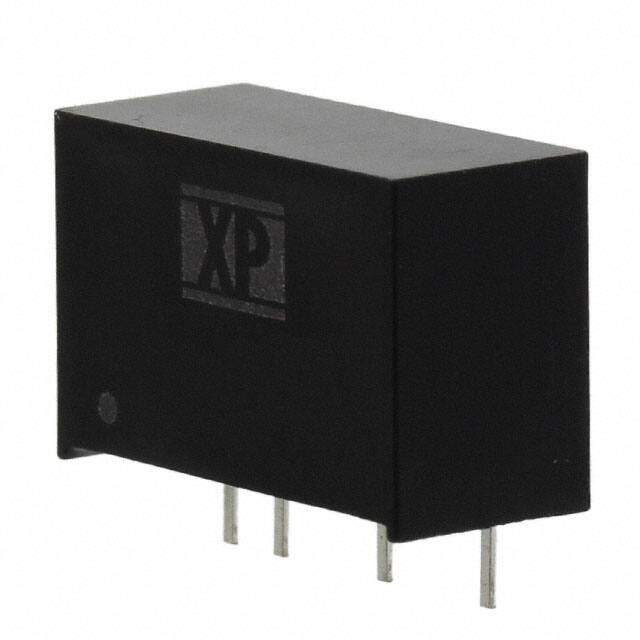

ITW4815SA
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ITW4815SAIsolated Board Mount DC/DC Converter, Regulated, SIP, Fixed, Through Hole, 1 W, 15 V, 67 mA
PDF
/
Buying Options
Total Price: USD $10.11
Unit Price: USD $10.1124
≥1 USD $10.1124
≥10 USD $9.54
≥100 USD $9
≥1000 USD $8.00997
Inventory: 5431
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.62mm
Height 11mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Nominal Output Voltage 15V
Max Output Power 1W
Current - Output 1 67mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Output 1 15V
Max Output Current 67mA
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 78%
Number of Outputs 1
JESD-30 Code R-XSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 17mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.67Lx0.30W x 0.43 H 17.0mmx7.6mmx11.0mm
Series ITW (1W)
Published 1997
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SIP Module, 4 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
