ITA0505S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

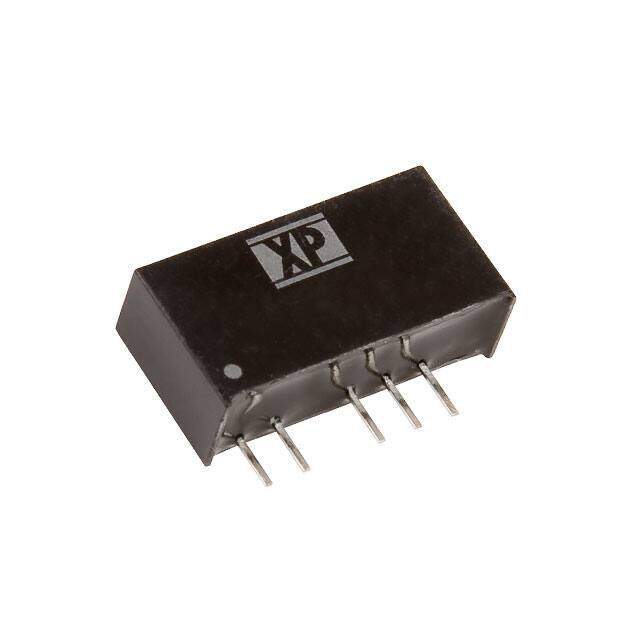

XP POWER ITA0505S Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 4.5 V, 5.5 V, 1 W, 5 V
PDF
/
Buying Options
Total Price: USD $7.87
Unit Price: USD $7.8652
≥1 USD $7.8652
≥10 USD $7.42
≥100 USD $7
Inventory: 2030
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.906mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 100mA
Max Output Power 1W
Current - Output 1 100mA
Voltage - Output 2 -5V
Output Power 1W
Current - Output (Max) 100mA 100mA
Voltage - Output 1 5V
Max Output Current 100mA
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 2
Depth 6mm
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.39 H 19.5mmx6.0mmx10.0mm
Series ITA (1W)
Published 2012
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Package / Case 7-SIP Module, 6 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
