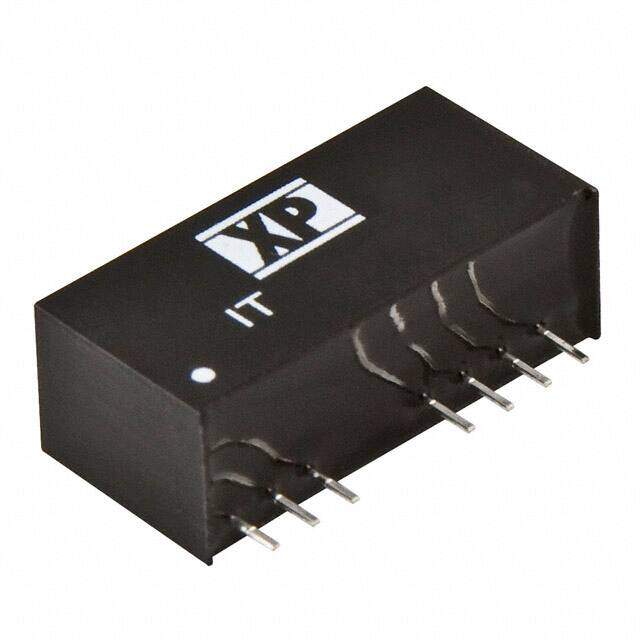

IT2403SA
RoHS
RoHS compliant
RoHS compliantPackage 9-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER IT2403SA Isolated Board Mount DC/DC Converter, Regulated, Fixed, 1 Output, 9 V, 36 V, 3 W, 3.3 V
PDF
/
Buying Options
Total Price: USD $110.47
Unit Price: USD $110.466552
≥1 USD $110.466552
≥10 USD $104.213732
≥100 USD $98.314846
≥500 USD $92.749855
≥1000 USD $87.499858
Inventory: 7596
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 9-SIP Module, 7 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2013
Series IT (3W)
Size / Dimension 1.02Lx0.36W x 0.49 H 26.0mmx9.2mmx12.5mm
Feature Remote On/Off, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 3W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 26mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 9/7
JESD-30 Code R-XSMA-T7
Number of Outputs 1
Efficiency 77%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 3.3V
Max Output Current 700mA
Operating Supply Voltage 24V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 700mA
Output Power 3W
Control Features Enable, Active Low
Current - Output 1 700mA
Max Output Power 3W
Nominal Output Voltage 3.3V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 9V
Dimensions
Height 12.446mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
