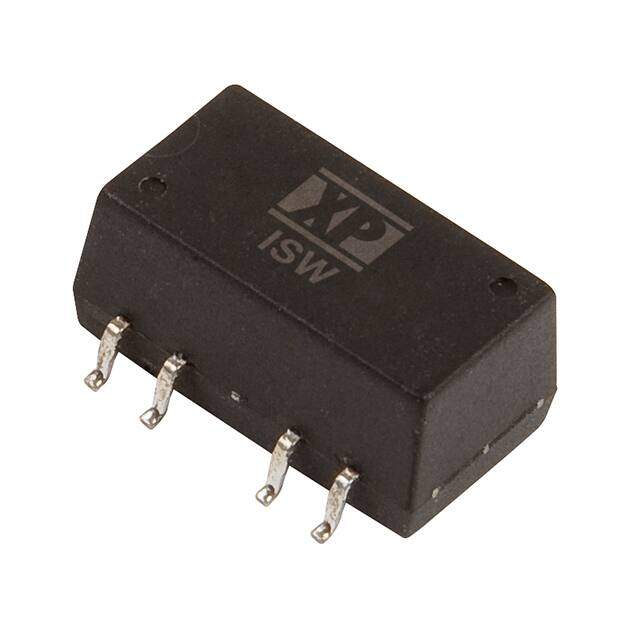

ISW0505A
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Inventory: 3375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 8.3mm
Height 7mm
Technical
Min Input Voltage (DC) 4.75V
Max Input Voltage (DC) 5.25V
Max Output Power 1W
Current - Output 1 200mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.25V
Voltage - Isolation 1.5kV
Efficiency 72%
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Depth 15.24mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.60Lx0.44W x 0.26 H 15.2mmx11.2mmx6.5mm
Series ISW (1W)
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
