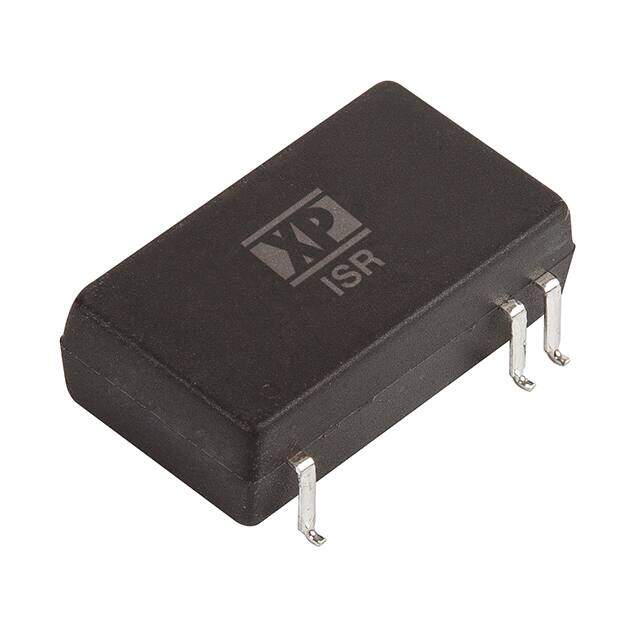

ISR4815A
RoHS
RoHS compliant
RoHS compliantPackage 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ISR4815A Isolated Board Mount DC/DC Converter, Regulated, Fixed, 1 Output, 36 V, 75 V, 3 W, 15 V
PDF
/
Inventory: 3275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 7.874mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Max Output Power 3W
Current - Output 1 200mA
Output Power 3W
Voltage - Output 1 15V
Max Output Current 200mA
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 1
Depth 23.86mm
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.9mmx13.7mmx8.0mm
Series ISR (3W)
Published 2015
Packaging Tube
Operating Temperature -40°C~95°C
Physical
Package / Case 16-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
