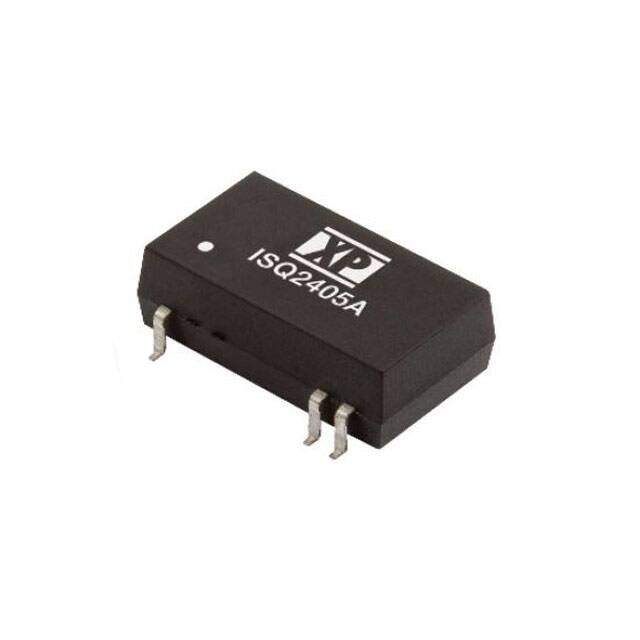

ISQ2405A
RoHS
RoHS compliant
RoHS compliantPackage 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ISQ2405A Isolated Board Mount DC/DC Converter, Fixed, 1 Output, 21.6 V, 26.4 V, 2 W, 5 V
PDF
/
Buying Options
Total Price: USD $21.2
Unit Price: USD $21.2
≥1 USD $21.2
≥10 USD $20
≥100 USD $18.86792
≥500 USD $17.79993
≥1000 USD $16.79239
Inventory: 8006
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 7.5mm
Technical
Min Input Voltage (DC) 21.6V
Max Input Voltage (DC) 26.4V
Nominal Output Voltage 5V
Max Output Power 2W
Nominal Input Voltage 24V
Current - Output 1 400mA
Output Power 2W
Output Current 400mA
Voltage - Input (Min) 21.6V
Operating Supply Voltage 24V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 26.4V
Voltage - Isolation 6kV
Efficiency 77%
Number of Outputs 1
Depth 23.86mm
Power Rating 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 0.94Lx0.54W x 0.30 H 23.9mmx13.7mmx7.6mm
Series ISQ (2W)
Published 2011
Operating Temperature -40°C~85°C
Physical
Package / Case 16-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
