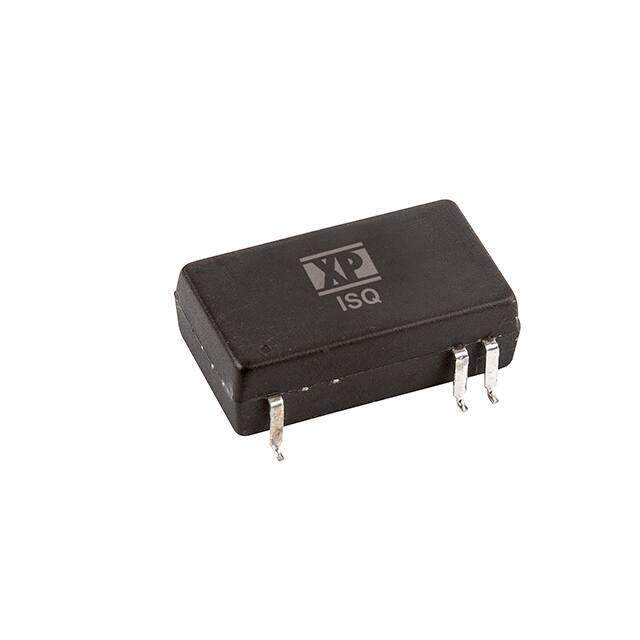

ISQ1205A
RoHS
/
Package 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ISQ1205A Isolated Board Mount DC/DC Converter, Fixed, 1 Output, 10.8 V, 13.2 V, 2 W, 5 V
PDF
/
Inventory: 4636
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 7.5mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Nominal Output Voltage 5V
Max Output Power 2W
Nominal Input Voltage 12V
Current - Output 1 400mA
Output Power 2W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Operating Supply Voltage 12V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 13.2V
Voltage - Isolation 6kV
Efficiency 76%
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 23.86mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Power Rating 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.9mmx13.7mmx7.9mm
Series ISQ (2W)
Published 2011
Operating Temperature -40°C~85°C
Physical
Package / Case 16-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
