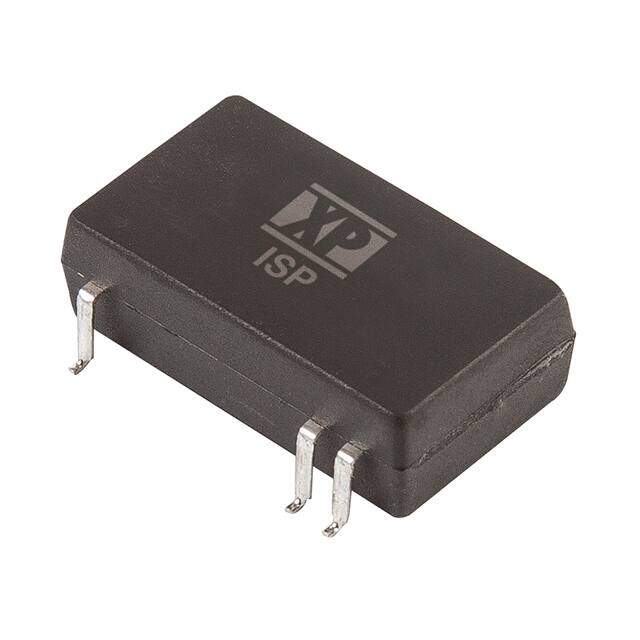

ISP2415 image
Favorite
ISP2415 image
Favorite

ISP2415

XP Power
RoHS
/
Package 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER ISP2415 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 18 V, 36 V, 2 W, 15 V
PDF
/
Buying Options
Total Price: USD $21.2
Unit Price: USD $21.2
≥1 USD $21.2
≥10 USD $20
≥100 USD $18.86792
≥500 USD $17.79993
≥1000 USD $16.79239
Inventory: 9782
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 16-SMD Module, 6 Leads

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2010
Series ISP (2W)
Size / Dimension 0.94Lx0.54W x 0.31 H 23.9mmx13.7mmx8.0mm
Feature SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 2W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 23.86mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 16
JESD-30 Code R-XDMA-G16
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 1.5kV
Output Voltage 15V
Max Output Current 67mA
Operating Supply Voltage 24V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 67mA
Output Power 2W
Voltage - Output 2 -15V
Current - Output 1 67mA
Max Output Power 2W
Nominal Output Voltage -15V
Current - Output 2 67mA
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V

Dimensions

Height 7.874mm
Width 13.7mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant

Alternative Model
