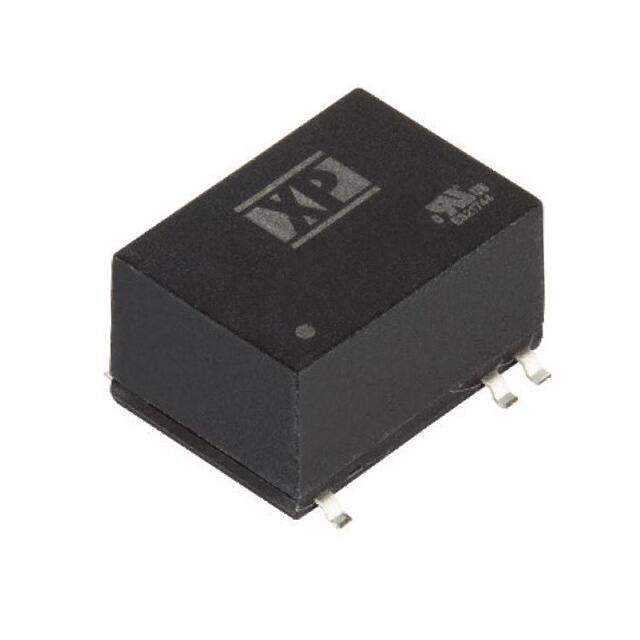

ISM0112S05
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.1012
≥1 USD $19.1012
≥10 USD $18.02
≥100 USD $17
≥500 USD $16.03774
≥1000 USD $15.12994
≥3000 USD $14.27353
Inventory: 3155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module, 6 Leads
Technical
Operating Temperature -40°C~95°C With Derating
Series ISM01 (1W)
Size / Dimension 0.74Lx0.54W x 0.41 H 18.9mmx13.7mmx10.5mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Isolated Module
Applications Medical
Power (Watts) 1W
Number of Outputs 1
Efficiency 76%
Voltage - Isolation 4kV
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Input (Min) 10.8V
Current - Output (Max) 200mA
Compliance
RoHS Status ROHS3 Compliant
