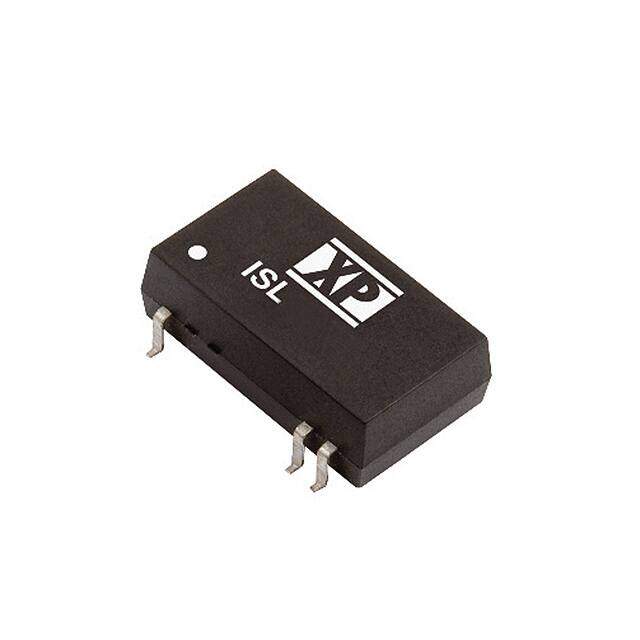

ISL4803A
RoHS
/
Package 16-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ISL4803A Isolated Board Mount DC/DC Converter, Regulated, Fixed, 1 Output, 18 V, 72 V, 1.5 W, 3.3 V
PDF
/
Inventory: 9051
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Height 7.874mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 72V
Nominal Output Voltage 3.3V
Max Output Power 1.5W
Current - Output 1 455mA
Output Power 1.5W
Output Current 455mA
Max Output Current 455mA
Output Voltage 3.3V
Voltage - Input (Max) 72V
Voltage - Isolation 1.5kV
Efficiency 72%
Number of Outputs 1
Depth 23.86mm
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature SCP
Size / Dimension 0.94Lx0.54W x 0.31 H 23.9mmx13.7mmx8.0mm
Series ISL (1.5W)
Published 2013
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 16-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
