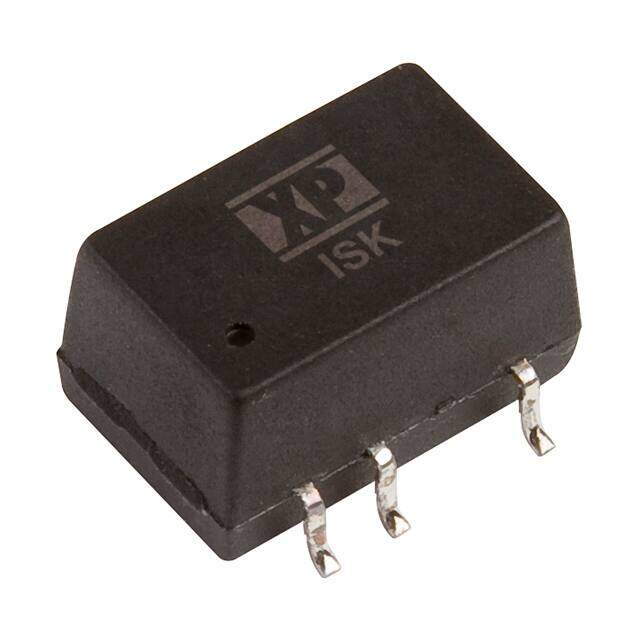

ISK1212A
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER ISK1212A Isolated Board Mount DC/DC Converter, Fixed, 1 Output, 10.8 V, 13.2 V, 250 mW, 12 V
PDF
/
Buying Options
Total Price: USD $7.42
Unit Price: USD $7.42
≥1 USD $7.42
≥10 USD $7
≥100 USD $6.60377
≥1000 USD $5.87733
≥3000 USD $5.54466
Inventory: 3031
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 8.3mm
Height 7.366mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Max Output Power 250mW
Current - Output 1 21mA
Output Power 250mW
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Output 1 12V
Max Output Current 21mA
Output Voltage 12V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1.5kV
Efficiency 79%
Number of Outputs 1
JESD-30 Code R-XDMA-G5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 12.7mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 250mW
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.33W x 0.29 H 12.7mmx8.3mmx7.3mm
Series ISK (0.25W)
Published 2014
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Package / Case 8-SMD Module, 5 Leads
Mounting Type Surface Mount
Mount PCB, Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
