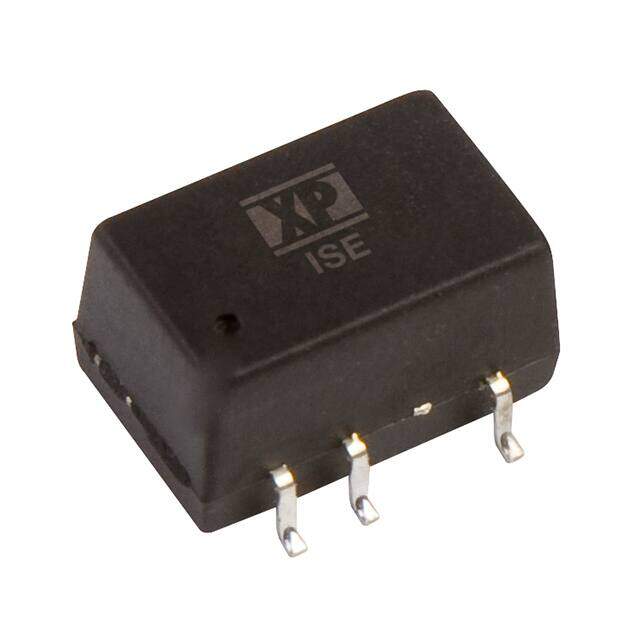

ISE0505A
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $6.18
Unit Price: USD $6.1798
≥1 USD $6.1798
≥10 USD $5.83
≥100 USD $5.5
≥500 USD $5.18868
≥1000 USD $4.89498
≥3000 USD $4.61791
Inventory: 6276
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2014
Series ISE (1W)
Size / Dimension 0.50Lx0.33W x 0.28 H 12.7mmx8.3mmx7.0mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 12.7mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-G5
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 200mA
Voltage - Output 1 5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Power 1W
Current - Output 1 200mA
Max Output Power 1W
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 7mm
Width 8.3mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
