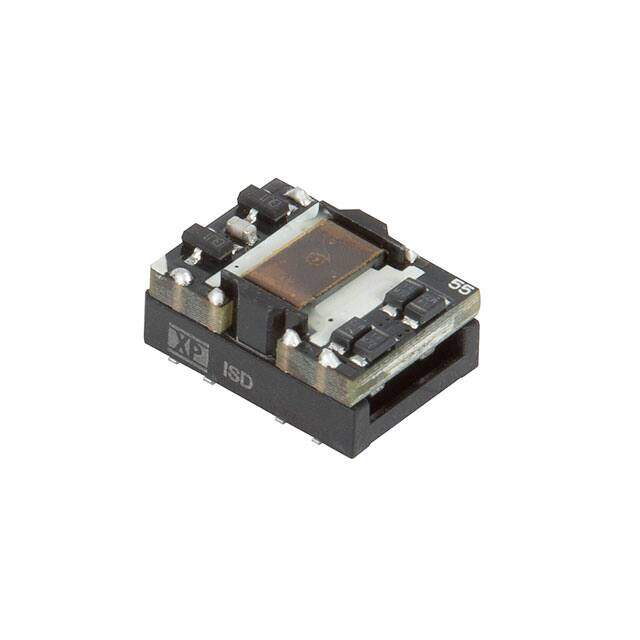

ISD0205D05
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 2W
PDF
/
Buying Options
Total Price: USD $8.37
Unit Price: USD $8.374
≥1 USD $8.374
≥10 USD $7.9
≥100 USD $7.45283
≥500 USD $7.03097
≥1000 USD $6.63299
Inventory: 2327
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 7.1mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -5V
Current - Output (Max) 200mA 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 4.2kV
Efficiency 81%
Number of Outputs 2
JESD-30 Code R-PDMA-N6
Number of Functions 1
Terminal Form NO LEAD
Terminal Position DUAL
Technology HYBRID
Power (Watts) 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.60Lx0.44W x 0.27 H 15.2mmx11.2mmx6.9mm
Series ISD02 (2W)
Operating Temperature -40°C~105°C With Derating
Physical
Surface Mount NO
Package / Case 10-SMD Module, 6 Leads
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
