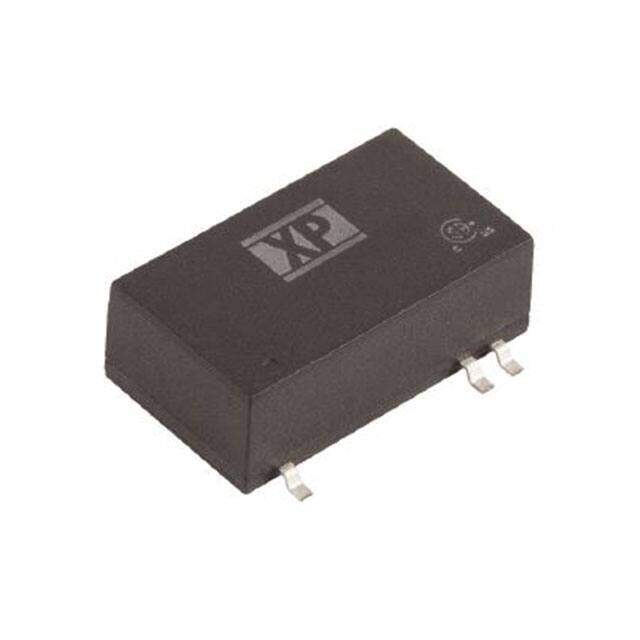

ISC0324D12 image
Favorite
ISC0324D12 image
Favorite

ISC0324D12

XP Power
RoHS
/
Package 16-SMD Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER ISC0324D12 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 36 V, 3 W, 12 VNew
PDF
/
Buying Options
Total Price: USD $24.31
Unit Price: USD $24.3058
≥1 USD $24.3058
≥10 USD $22.93
≥100 USD $21.63208
Inventory: 84
Minimum: 1
-
+

Technical Details

Compliance

REACH SVHC No SVHC

Dimensions

Height 7.874mm

Technical

Min Input Voltage (DC) 9V
Max Input Voltage (DC) 36V
Current - Output 2 125mA
Max Output Power 3W
Current - Output 1 125mA
Voltage - Output 2 -12V
Control Features Enable, Active High
Output Power 3W
Current - Output (Max) 125mA 125mA
Voltage - Output 1 12V
Max Output Current 125mA
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 2
Reach Compliance Code compliant
Depth 24mm
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, SCP, UVLO
Size / Dimension 0.94Lx0.54W x 0.31 H 24.0mmx13.7mmx8.0mm
Series ISC03 (3W)
Published 2015
Packaging Bulk
Operating Temperature -40°C~100°C

Physical

Package / Case 16-SMD Module, 7 Leads
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
