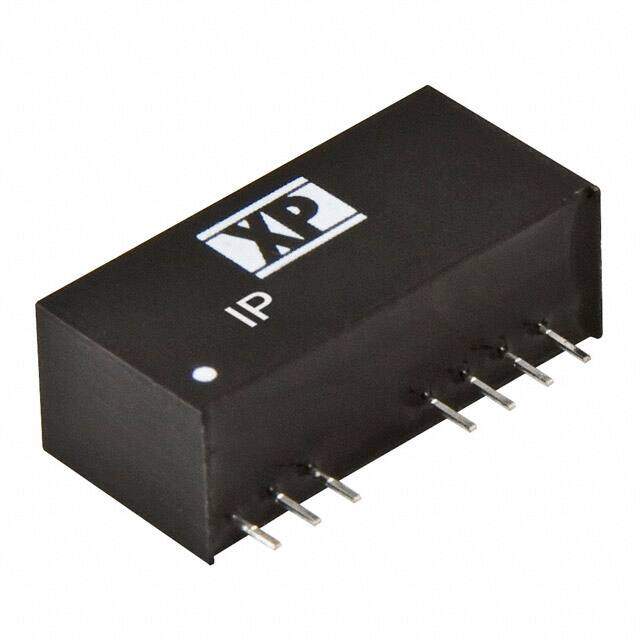

IP4815SA
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER, 3W, 4:1 I/P15V O/P
PDF
/
Buying Options
Total Price: USD $17.98
Unit Price: USD $17.9776
≥1 USD $17.9776
≥10 USD $16.96
≥100 USD $16
≥500 USD $15.09434
≥1000 USD $14.23994
Inventory: 1616
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 11.1mm
Technical
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Nominal Output Voltage 15V
Max Output Power 3W
Current - Output 1 200mA
Control Features Enable, Active Low
Output Power 3W
Output Current 200mA
Operating Supply Voltage 48V
Max Output Current 200mA
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 81%
Number of Outputs 1
Depth 21.85mm
Max Power Dissipation 3W
Power Rating 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.9mmx9.2mmx11.1mm
Series IP (3W)
Published 2007
Packaging Tube
Operating Temperature -40°C~70°C
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
