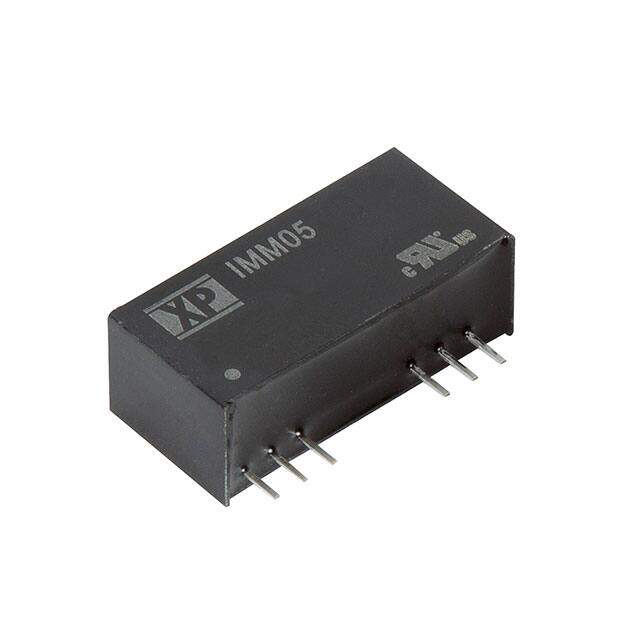

IMM0512D15
RoHS
RoHS compliant
RoHS compliantPackage 9-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC, 5W, 2:1 INPUT, MEDICAL AP
PDF
/
Buying Options
Total Price: USD $21.35
Unit Price: USD $21.3484
≥1 USD $21.3484
≥10 USD $20.14
≥100 USD $19
≥500 USD $17.92453
≥1000 USD $16.90993
Inventory: 2579
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 9-SIP Module, 6 Leads
Technical
Operating Temperature -20°C~100°C With Derating
Series IMM05 (5W)
Size / Dimension 1.02Lx0.36W x 0.49 H 26.0mmx9.3mmx12.5mm
Feature Remote On/Off, OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications Medical
Power (Watts) 5W
Number of Outputs 2
Efficiency 82%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Input (Min) 9V
Current - Output (Max) 166mA 166mA
Voltage - Output 2 -15V
Compliance
RoHS Status ROHS3 Compliant
