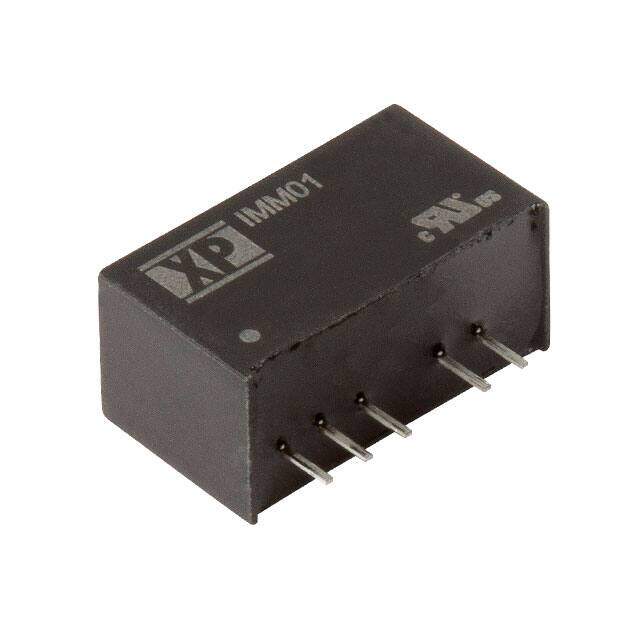

IMM0105D05
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC CONV, 1W, MEDICAL APPROVAL
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.32589
≥1 USD $11.32589
≥10 USD $10.6848
≥100 USD $10.08
≥500 USD $9.50943
≥1000 USD $8.97116
Inventory: 967
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 19.5mm
Height 11.176mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 9V
Current - Output 2 100mA
Max Output Power 1W
Current - Output 1 100mA
Voltage - Output 2 -5V
Control Features Enable, Active Low
Output Power 1W
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Output 1 5V
Max Output Current 100mA
Output Voltage 5V
Voltage - Isolation 1.5kV
Efficiency 81%
Number of Outputs 2
JESD-30 Code R-XSMA-P6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 9.2mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Additional Feature ALSO OPERATES WITH OUTPUT VOLTAGE -5 V
Applications Medical
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 0.77Lx0.36W x 0.44 H 19.5mmx9.2mmx11.1mm
Series IMM01 (1W)
Published 2016
Packaging Tube
Operating Temperature -20°C~100°C
Physical
Package / Case 7-SIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
