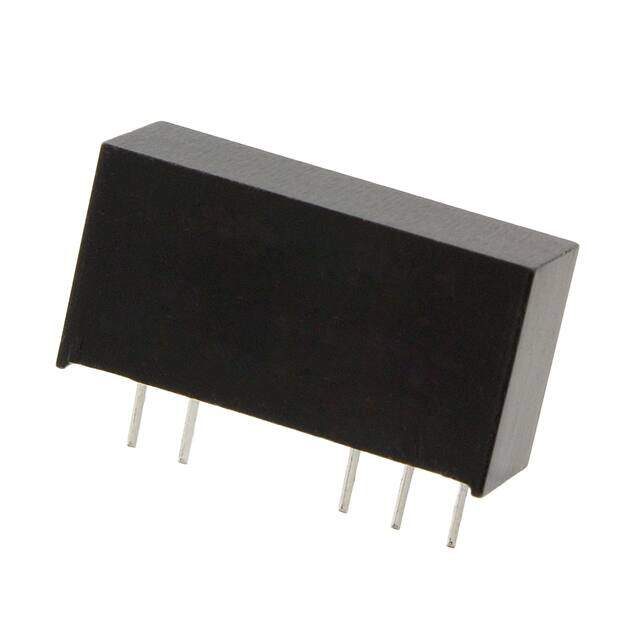

IML0224D12
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC CONVERTER, 2W, SIP7, MEDIC
PDF
/
Buying Options
Total Price: USD $8.43
Unit Price: USD $8.427
≥1 USD $8.427
≥10 USD $7.95
≥100 USD $7.5
≥1000 USD $6.67497
Inventory: 2131
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 9.8mm
Height 11.938mm
Technical
Min Input Voltage (DC) 21.6V
Max Input Voltage (DC) 26.4V
Current - Output 2 83mA
Max Output Power 2W
Current - Output 1 83mA
Voltage - Output 2 -12V
Output Power 2W
Current - Output (Max) 83mA 83mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Output 1 12V
Max Output Current 83mA
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 80%
Number of Outputs 2
JESD-30 Code R-XSMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 19.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications Medical
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.39W x 0.47 H 19.5mmx9.8mmx12.0mm
Series IML02 (2W)
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
