IM4812S
RoHS
RoHS compliant
RoHS compliantPackage 9-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER, DC/DC 2W, +/-12V WIDE I/P
PDF
/
Buying Options
Total Price: USD $15.73
Unit Price: USD $15.7304
≥1 USD $15.7304
≥10 USD $14.84
≥100 USD $14
≥1000 USD $12.45995
Inventory: 6593
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 9-SIP Module, 7 Leads
Technical
Operating Temperature -40°C~100°C
Packaging Tube
Published 2009
Series IM (2W)
Min Input Voltage (DC) 18V
Max Input Voltage (DC) 75V
Current - Output 2 85mA
Nominal Output Voltage -12V
Max Output Power 2W
Current - Output 1 85mA
Voltage - Output 2 -12V
Control Features Enable, Active Low
Output Power 2W
Output Current 85mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Operating Supply Voltage 48V
Max Output Current 85mA
Output Voltage 12V
Voltage - Isolation 1.5kV
Efficiency 81%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XSMA-T7
Depth 26mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Power Rating 2W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 1.02Lx0.36W x 0.49 H 26.0mmx9.2mmx12.5mm
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 12.446mm

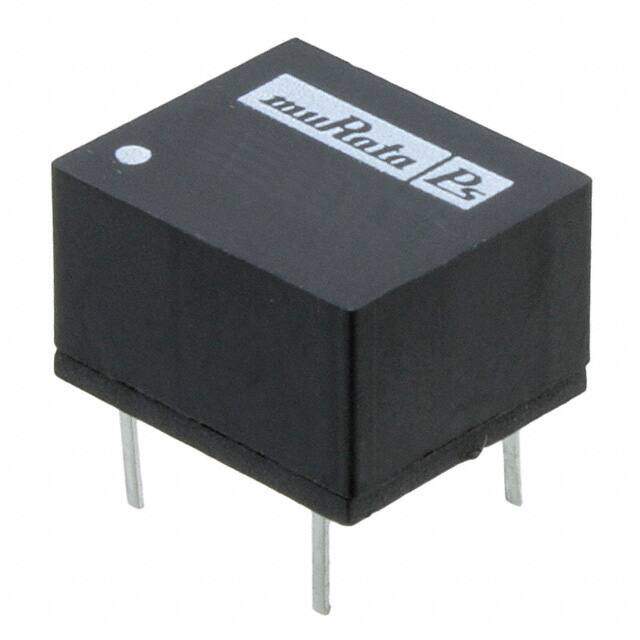

Alternative Model
