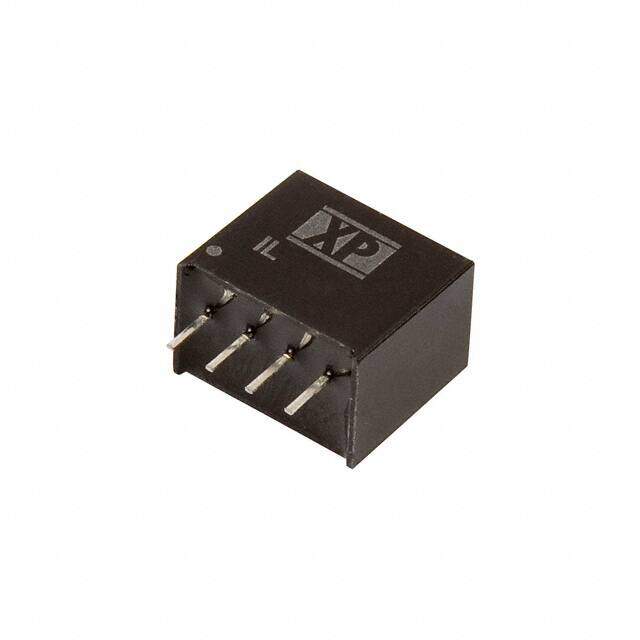

IL4803S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER, 2W, SINGLE O/P
PDF
/
Buying Options
Total Price: USD $15.37
Unit Price: USD $15.37
≥1 USD $15.37
≥10 USD $14.5
≥100 USD $13.67925
≥500 USD $12.90495
≥1000 USD $12.17448
≥3000 USD $11.48536
Inventory: 3581
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.5mm
Height 10.16mm
Technical
Min Input Voltage (DC) 43.2V
Max Input Voltage (DC) 52.8V
Nominal Output Voltage 3.3V
Max Output Power 2W
Nominal Input Voltage 48V
Current - Output 1 400mA
Output Power 2W
Output Current 400mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Operating Supply Voltage 48V
Max Output Current 400mA
Output Voltage 3.3V
Voltage - Input (Max) 52.8V
Voltage - Isolation 1kV
Efficiency 72%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T4
Pin Count 4
Depth 11.68mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power Rating 2W
Subcategory Other Analog ICs
Additional Feature LG-MAX
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.46Lx0.29W x 0.40 H 11.7mmx7.5mmx10.2mm
Series IL (2W)
Published 2005
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
