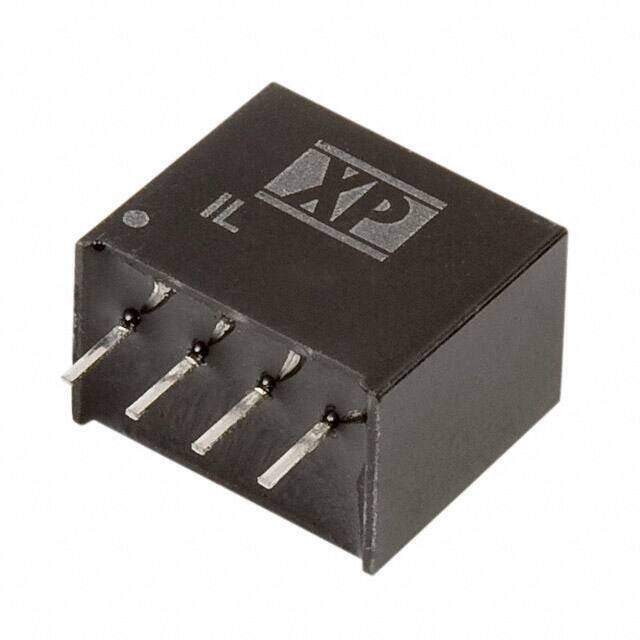

IL0505S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER, DC/DC, 2W, 5V
PDF
/
Buying Options
Total Price: USD $10.11
Unit Price: USD $10.1124
≥1 USD $10.1124
≥10 USD $9.54
≥100 USD $9
≥500 USD $8.49057
≥1000 USD $8.00997
≥3000 USD $7.55657
Inventory: 7346
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 5V
Max Output Power 2W
Nominal Input Voltage 5V
Current - Output 1 400mA
Output Power 2W
Output Current 400mA
Operating Supply Voltage 5V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 77%
Number of Outputs 1
Depth 11.68mm
Max Power Dissipation 2W
Power Rating 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.46Lx0.30W x 0.40 H 11.7mmx7.5mmx10.2mm
Series IL (2W)
Published 2011
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
