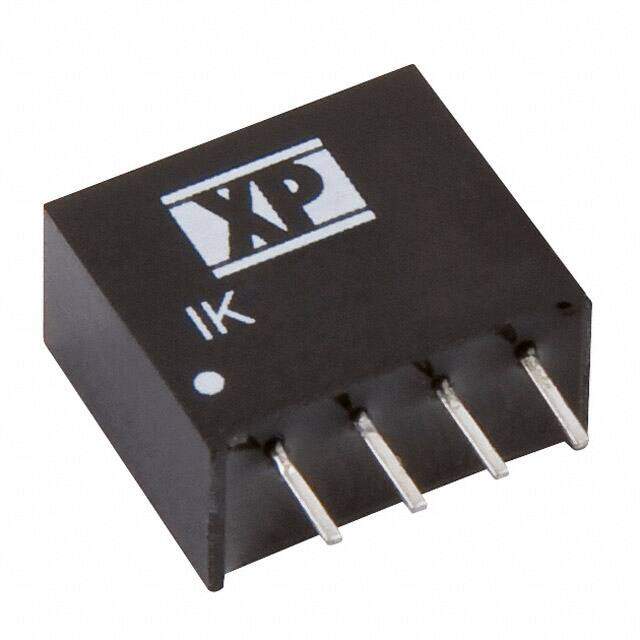

IK2412SA
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 250MW
PDF
/
Buying Options
Total Price: USD $5.62
Unit Price: USD $5.618
≥1 USD $5.618
≥10 USD $5.3
≥100 USD $5
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.16mm
Technical
Min Input Voltage (DC) 21.6V
Max Input Voltage (DC) 26.4V
Max Output Power 250mW
Current - Output 1 20.83mA
Output Power 250mW
Current - Output (Max) 20.8mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Output 1 12V
Max Output Current 20.8mA
Output Voltage 12V
Voltage - Isolation 1kV
Efficiency 56%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 11.68mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 250mW
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.46Lx0.24W x 0.40 H 11.7mmx6.0mmx10.2mm
Series IK (0.25W)
Published 2014
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
