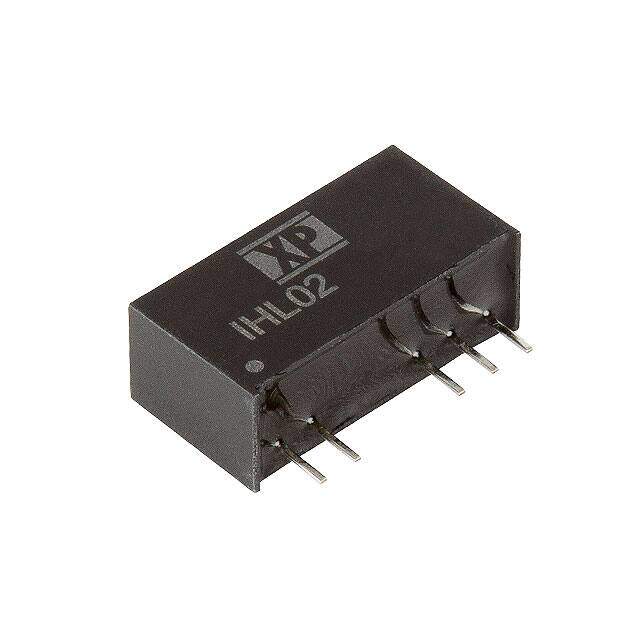

IHL0215D09

XP Power
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC, 2W, DUAL OUTPUT, HIGH ISO
PDF
/
Buying Options
Total Price: USD $8.99
Unit Price: USD $8.9888
≥1 USD $8.9888
≥10 USD $8.48
≥100 USD $8
≥1000 USD $7.11997
Inventory: 964
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 9.398mm

Technical

Voltage - Output 2 -9V
Output Power 2W
Current - Output (Max) 111mA 111mA
Voltage - Input (Min) 13.5V
Voltage - Output 1 9V
Max Output Current 111mA
Voltage - Input (Max) 16.5V
Voltage - Isolation 5.2kV
Efficiency 81%
Number of Outputs 2
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.39W x 0.37 H 19.5mmx10.0mmx9.5mm
Series IHL02 (2W)
Published 2016
Packaging Tube
Operating Temperature -40°C~95°C

Physical

Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
