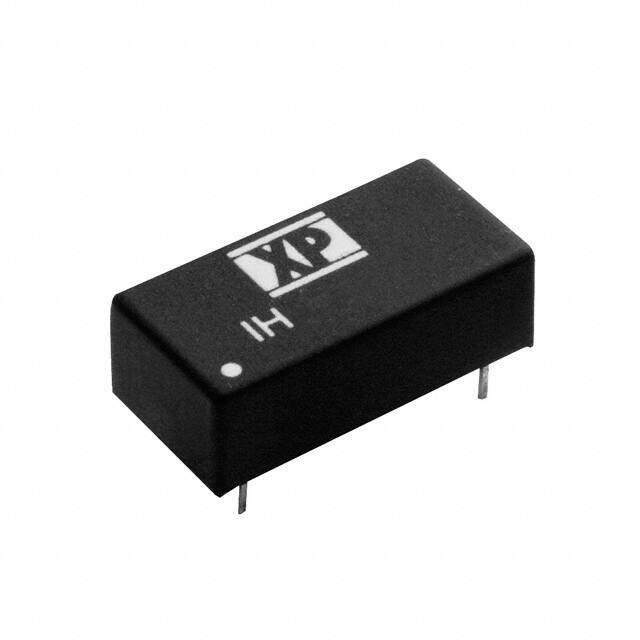

IH2415D
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER, DC/DC, 2W, +/-15V
PDF
/
Buying Options
Total Price: USD $9.78
Unit Price: USD $9.77532
≥1 USD $9.77532
≥10 USD $9.222
≥100 USD $8.7
≥500 USD $8.20755
≥1000 USD $7.74297
≥3000 USD $7.30469
Inventory: 8316
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2013
Series IH (2W)
Size / Dimension 0.80Lx0.40W x 0.27 H 20.3mmx10.2mmx6.9mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature LG-MAX, WD-MAX
Subcategory Other Analog ICs
Power Rating 2W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 20.32mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-T6
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 82%
Voltage - Isolation 1kV
Output Voltage 15V
Max Output Current 66mA
Operating Supply Voltage 24V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 66mA 66mA
Output Current 66mA
Output Power 2W
Voltage - Output 2 -15V
Current - Output 1 66mA
Max Output Power 2W
Nominal Output Voltage -15V
Current - Output 2 66mA
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V
Dimensions
Height 6.88mm
Width 10.16mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
