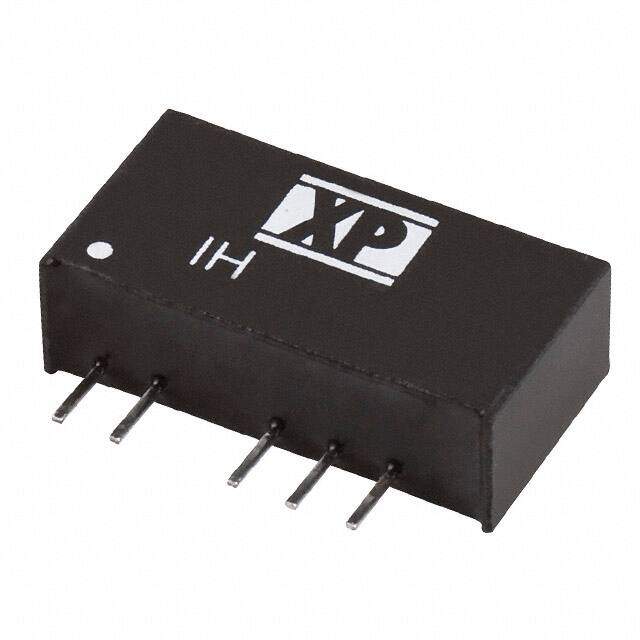

IH2403SH
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-3.3V 2W
PDF
/
Buying Options
Total Price: USD $11.24
Unit Price: USD $11.236
≥1 USD $11.236
≥10 USD $10.6
≥100 USD $10
≥1000 USD $8.89996
Inventory: 9320
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 5-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2009
Series IH (2W)
Size / Dimension 0.77Lx0.30W x 0.40 H 19.5mmx7.6mmx10.2mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature LG-MAX, WD-MAX
Subcategory Other Analog ICs
Power Rating 2W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
JESD-30 Code R-XSMA-T5
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 68%
Voltage - Isolation 3kV
Voltage - Input (Max) 26.4V
Output Voltage 3.3V
Max Output Current 200mA
Voltage - Output 1 3.3V
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 200mA 200mA
Output Current 200mA
Output Power 2W
Voltage - Output 2 -3.3V
Total Power Output-Max 2W
Dimensions
Height 10.16mm
Length 19.81mm
Compliance
RoHS Status ROHS3 Compliant
