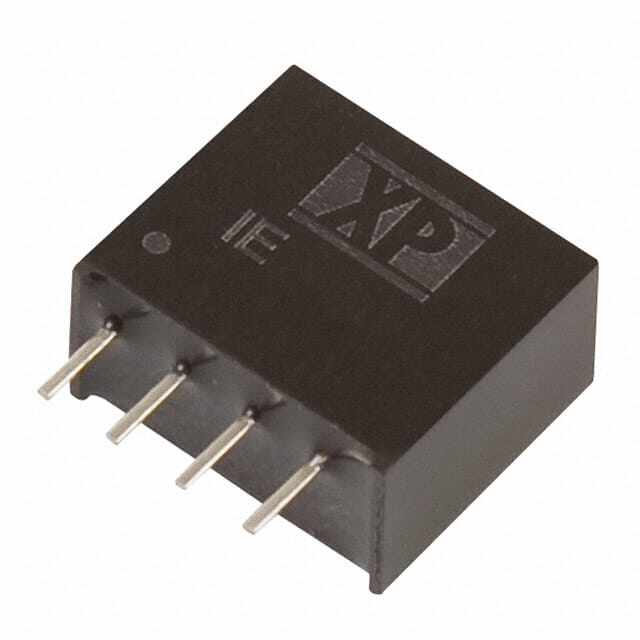

IE2403SH
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1W
PDF
/
Buying Options
Total Price: USD $7.87
Unit Price: USD $7.8652
≥1 USD $7.8652
≥10 USD $7.42
≥100 USD $7
Inventory: 5967
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Nominal Input Voltage 24V
Total Power Output-Max 0.99W
Output Power 1W
Output Current 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Output Voltage 3.3V
Voltage - Input (Max) 26.4V
Voltage - Isolation 3kV
Efficiency 72%
Number of Outputs 1
JESD-30 Code R-XSMA-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power Rating 1W
Additional Feature WIDTH-MAX; SEATED HGT CALCULATED
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.46Lx0.24W x 0.50 H 11.7mmx6.0mmx12.7mm
Series IE (1W)
Published 2009
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 4-SIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
