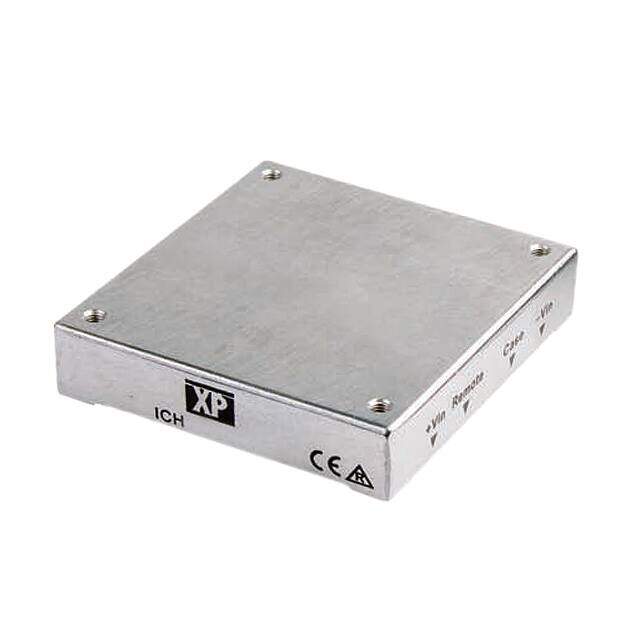

ICH5048S24
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER, 24V, 50W 1/2 BRICK
PDF
/
Buying Options
Total Price: USD $70.99
Unit Price: USD $70.98905
≥1 USD $70.98905
≥10 USD $66.9708
≥100 USD $63.18
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 57.9mm
Height 12.7mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Nominal Output Voltage 24V
Max Output Power 50W
Current - Output 1 2.08A
Control Features Enable, Active High
Output Power 50W
Output Current 2.08A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Operating Supply Voltage 48V
Max Output Current 2.08A
Output Voltage 24V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 86%
Number of Outputs 1
JESD-30 Code R-MDMA-P9
Pin Count 9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 61mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 50W
Power Rating 50W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OVP, SCP
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Series ICH (200W)
Published 2012
Packaging Box
Operating Temperature -40°C~100°C
Physical
Package / Case 9-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 12 Weeks
