IB0505S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description

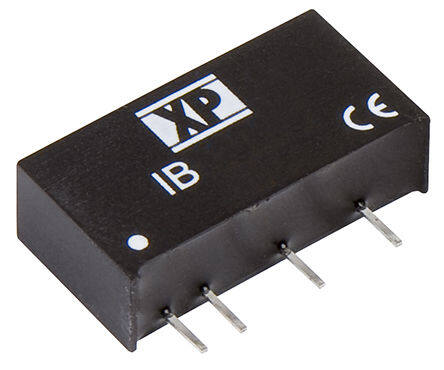

XP POWER IB0505S Isolated Board Mount DC/DC Converter, Fixed, 1 Output, 4.5 V, 5.5 V, 1 W, 5 V
PDF
/
Buying Options
Total Price: USD $6.65
Unit Price: USD $6.647203
≥1 USD $6.647203
≥10 USD $6.270953
≥100 USD $5.915987
≥500 USD $5.581113
≥1000 USD $5.26521
Inventory: 1368
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Published 2009
Series IB (1W)
Size / Dimension 0.76Lx0.24W x 0.40 H 19.3mmx6.0mmx10.1mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature LG-MAX; WD-MAX
Subcategory Other Analog ICs
Power Rating 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 19.3mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XSMA-T5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 78%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Current - Output 1 200mA
Nominal Input Voltage 5V
Max Output Power 1W
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 10.1mm
Width 6.09mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
