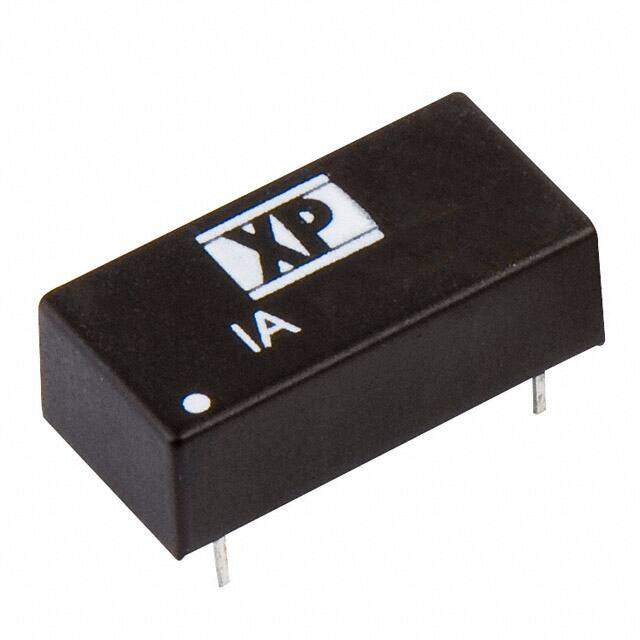

IA2405D
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER IA2405D 1 Watt DIP Dual Output DC/DC Converter, Input 24V, Output 5V/100mA
PDF
/
Buying Options
Total Price: USD $6.29
Unit Price: USD $6.29216
≥1 USD $6.29216
≥10 USD $5.936
≥100 USD $5.6
≥500 USD $5.28302
≥1000 USD $4.98398
≥3000 USD $4.70187
Inventory: 3953
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.16mm
Height 6.35mm
Technical
Min Input Voltage (DC) 21.6V
Max Input Voltage (DC) 26.4V
Current - Output 2 100mA
Max Output Power 1W
Current - Output 1 100mA
Voltage - Output 2 -5V
Output Power 1W
Output Current 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 100mA
Output Voltage 5V
Voltage - Isolation 1kV
Efficiency 74%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code R-XDMA-T6
Depth 20.32mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Subcategory Other Analog ICs
Additional Feature LG-MAX; WD-MAX
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.80Lx0.40W x 0.25 H 20.3mmx10.2mmx6.4mm
Series IA (1W)
Published 2013
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
