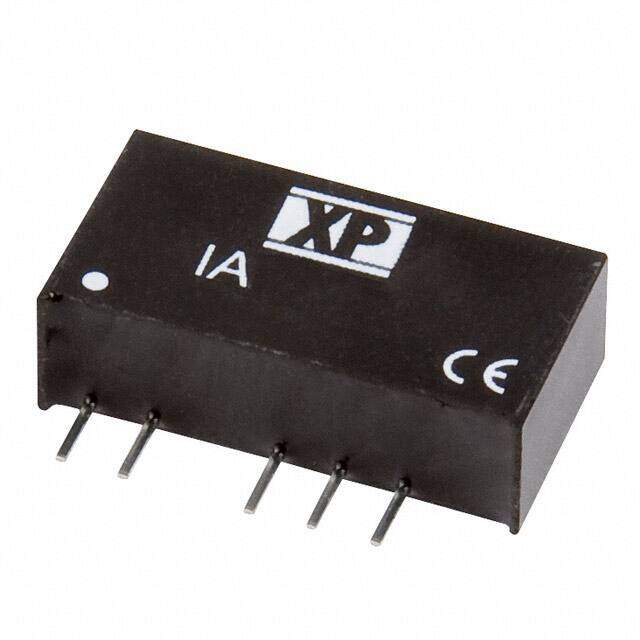

IA2403S image
Favorite
IA2403S image
Favorite

IA2403S

XP Power
RoHS
RoHS RoHS compliant
Package 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description XP POWER IA2403S Isolated Board Mount DC/DC Converter, SIP, Through Hole, Fixed, 26.4 V, 21.6 V, 2
PDF
/
Buying Options
Total Price: USD $6.18
Unit Price: USD $6.1798
≥1 USD $6.1798
≥10 USD $5.83
≥100 USD $5.5
Inventory: 73
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case 5-SIP Module

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2013
Series IA (1W)
Size / Dimension 0.76Lx0.24W x 0.40 H 19.3mmx6.1mmx10.2mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature LG-MAX; WD-MAX
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 19.3mm
JESD-30 Code R-XSMA-T5
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 68%
Voltage - Isolation 1kV
Output Voltage 3.3V
Max Output Current 151mA
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 151mA
Output Power 1W
Current - Output 1 151mA
Nominal Input Voltage 24V
Max Output Power 1W
Nominal Output Voltage -3.3V
Current - Output 2 151mA
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V

Dimensions

Height 10.16mm
Width 6.09mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
